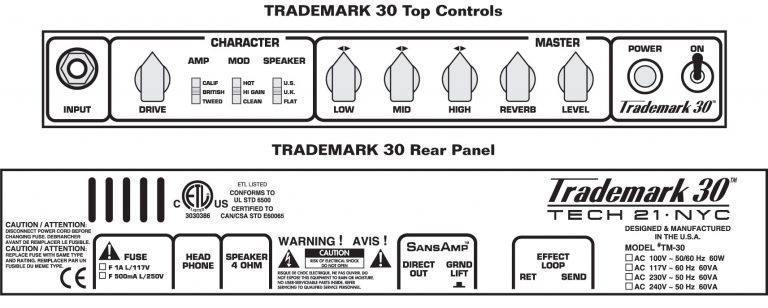

TRADEMARK 30
Single channel, 1×10, 30 watts.
We call this our Direct Recording Combo Amp. We should have called it Yoda, because there isn’t much this diminutive wizard can’t handle. The heart of the crafty Trademark 30 is a modified version of the super flexible SansAmp GT2 pedal design. Construct your tone by selecting amp character, gain structure and speaker type, and then use the drive controls and active three-band EQ to nail your sound. The 30-watt output is plenty loud for practice and monitoring but the balanced XLR and 1/4” outputs bring the big tones of this little combo to the studio mixer or PA system. Bedroom, rehearsal, studio or club, the Trademark 30 will prove it’s a giant amongst compact combos.
SPECIFICATIONS
Model Number: TM30
Input Impedance: 1MOhm
Nominal Input Level*: -10dBu
Optimum Output Load: 4 Ohms
Power Output: 30W
Effect Loop Input Impedance: 1MOhm
Maximum Effect Loop Input*: approx. -6dBu
Effect Loop Output Impedance: 1KOhm
Nominal Effect Loop Output*: approx. -20dBu
Nominal XLR Output*: approx. -20dBu
Maximum Power Consumption: 60W
AC Input Power (Factory Set): 110V, 117V, 230V, 240V
Cycles: 50/60Hz
Speaker: Special Design Model #2110-T 10″, 50W, 4 Ohms
Cabinet Dimensions: 14.5″l x 8″w x 13.25″h
Weight: 14lbs
ADDITIONAL FEATURES
• Character section to construct a custom tone in seconds.
• Professional quality Accutronics® 3-spring reverb.
• 3-band, active tone controls, boost or cut 12dB.
• Effect Loop.
• Headphone output doubles as a 1/4” direct out.
• Speaker extension output.
• XLR Direct Output.
• Weighs just over 14lbs.
